EPO2.12_F4
EPO2.12
ID3
LocationNorway
Approximate number of models23
Approximate size132 GB
Experimentally produced objects for the purpose of the TEMPA 3D project. Experiments were held in January and November 2024, and included engraving of soapstone from Rennesøy and Målslev and sandstone from Kamyana Mohyla. Experimentally produced objects were specifically designed to look at the technological traces of the surface modification processes via image-based 3D modeling.
Dataset includes 23 models of the experimentally produced objects. Among other this includes flint and quartz marks on soapstone, sandstone, bone, and antler as well as experimental replicas of Kamyana Mohyla churinga and soapstone line sinkers. For most engravings the modification time was recorded along with the production tool. The accuracy of the models in the dataset are around 0.1 mm, the resolution — around 0.03 mm.
ID
EPO2.12
A piece of sandstone from Kamyana Mohyla, engraved (sawed) with flint blade for a recorded time (10 mins). No grinding or other preparation prior to the engraving
Information
Artifact material
Sandstone
Artifact is experimentally produced
Yes
Tool material [known]
Flint
Tool material [attributed]
N/A
Tool type [known]
Blade
Tool type [attributed]
N/A
Surface modification strategy description
Sawing

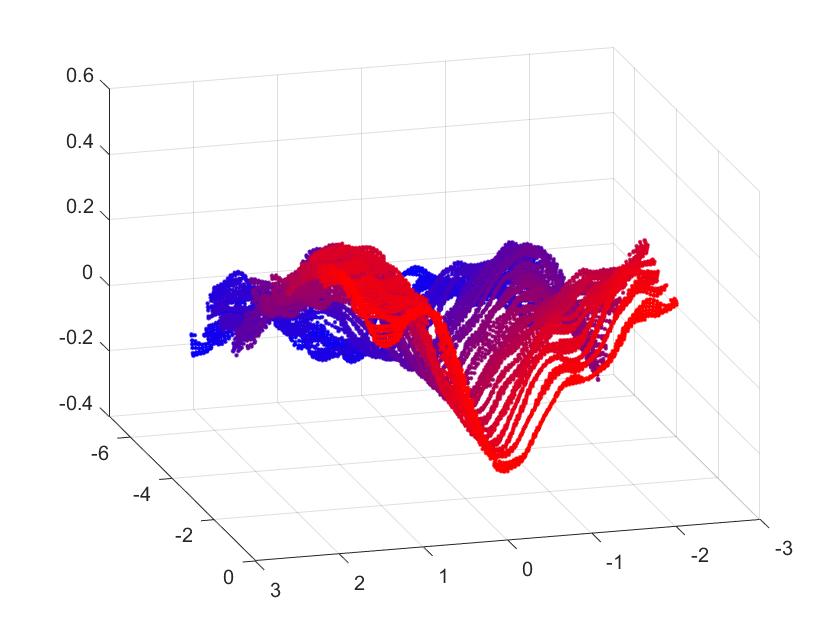

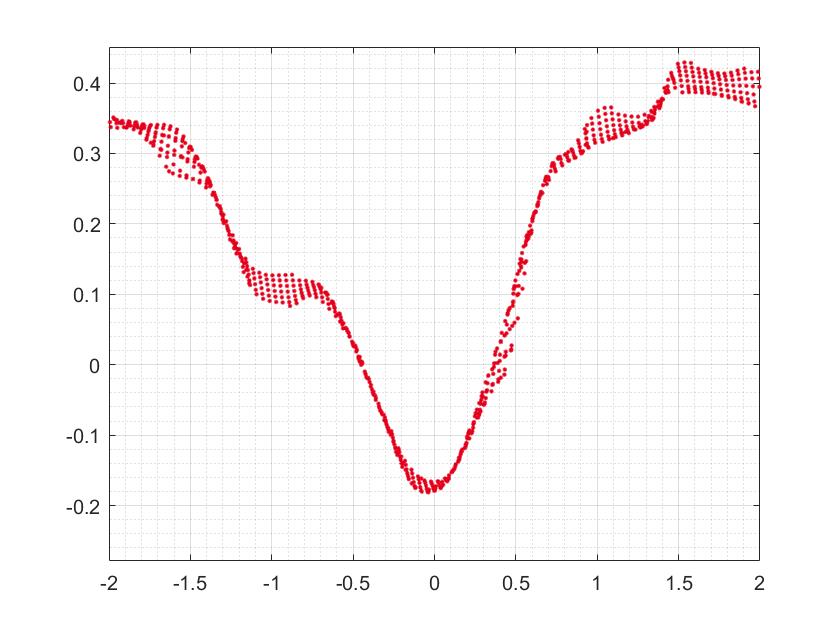

Number of slices
36
Aperture
135°
Depth
0.4866633999 mm
FWMH
1.402734127 mm
Extremum points, [MP]
2.111111111
Frequency of MP change per mm
1.888888889
Depth / FWMH ratio
0.3469391602
Comments on the slices analysis
Sawed with large flint blade for the extended period of time. The blade is crumblin, blunting, and braking very fast, while the engraving procedure is moderately effective. Producing a single engraving requires a lot of time and effort. Engraved during 10 minutes
Link to the data
N/A
