EPO2.13b_Q4
EPO2.13b
ID3
LocationNorway
Approximate number of models23
Approximate size132 GB
Experimentally produced objects for the purpose of the TEMPA 3D project. Experiments were held in January and November 2024, and included engraving of soapstone from Rennesøy and Målslev and sandstone from Kamyana Mohyla. Experimentally produced objects were specifically designed to look at the technological traces of the surface modification processes via image-based 3D modeling.
Dataset includes 23 models of the experimentally produced objects. Among other this includes flint and quartz marks on soapstone, sandstone, bone, and antler as well as experimental replicas of Kamyana Mohyla churinga and soapstone line sinkers. For most engravings the modification time was recorded along with the production tool. The accuracy of the models in the dataset are around 0.1 mm, the resolution — around 0.03 mm.
ID
EPO2.13b
A fresh bone of a red deer, washed and cleaned. It's back side is engraved (sawed) with a quartz blade for a recorded amount of time — 30s, 60s, 90s, and 120s
Information
Artifact material
Bone
Artifact is experimentally produced
Yes
Tool material [known]
Quartz
Tool material [attributed]
N/A
Tool type [known]
Blade
Tool type [attributed]
N/A
Surface modification strategy description
Sawing

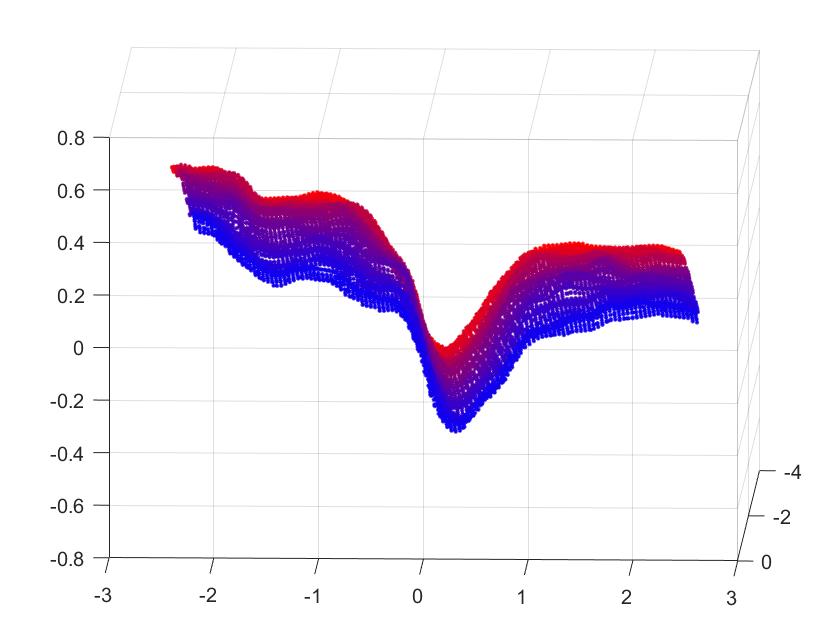

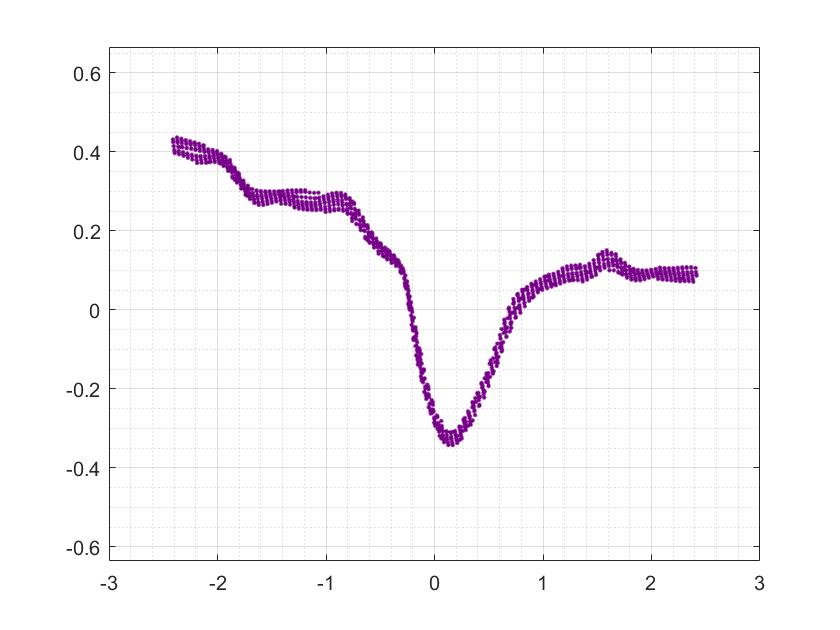

Number of slices
15
Aperture
109°
Depth
0.5269238376 mm
FWMH
0.8796845326 mm
Extremum points, [MP]
1.266666667
Frequency of MP change per mm
0.5333333333
Depth / FWMH ratio
0.5989918181
Comments on the slices analysis
Engraved with quartz blade during a recorded time to test the reaction of the surface on the engraving process. Recorded time is 120s. Engraved by the same person with the same tool and within one experimental session
Link to the data
N/A
