EPO2.3b_Q1
EPO2.3b
ID3
LocationNorway
Approximate number of models23
Approximate size132 GB
Experimentally produced objects for the purpose of the TEMPA 3D project. Experiments were held in January and November 2024, and included engraving of soapstone from Rennesøy and Målslev and sandstone from Kamyana Mohyla. Experimentally produced objects were specifically designed to look at the technological traces of the surface modification processes via image-based 3D modeling.
Dataset includes 23 models of the experimentally produced objects. Among other this includes flint and quartz marks on soapstone, sandstone, bone, and antler as well as experimental replicas of Kamyana Mohyla churinga and soapstone line sinkers. For most engravings the modification time was recorded along with the production tool. The accuracy of the models in the dataset are around 0.1 mm, the resolution — around 0.03 mm.
ID
EPO2.3b
A flat bottom surface of the experimentally produced piece made of the Rennesøy soapstone. Incised with a quartz burin point for the recorded time — 30s, 60s, and 90s.
Information
Artifact material
Soapstone
Artifact is experimentally produced
Yes
Tool material [known]
Quartz
Tool material [attributed]
N/A
Tool type [known]
Burin
Tool type [attributed]
N/A
Surface modification strategy description
Incising

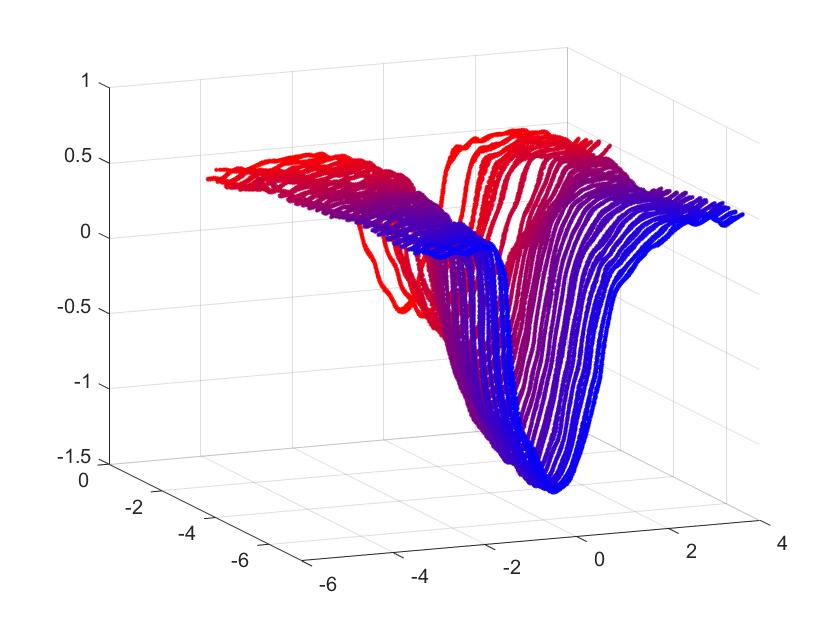

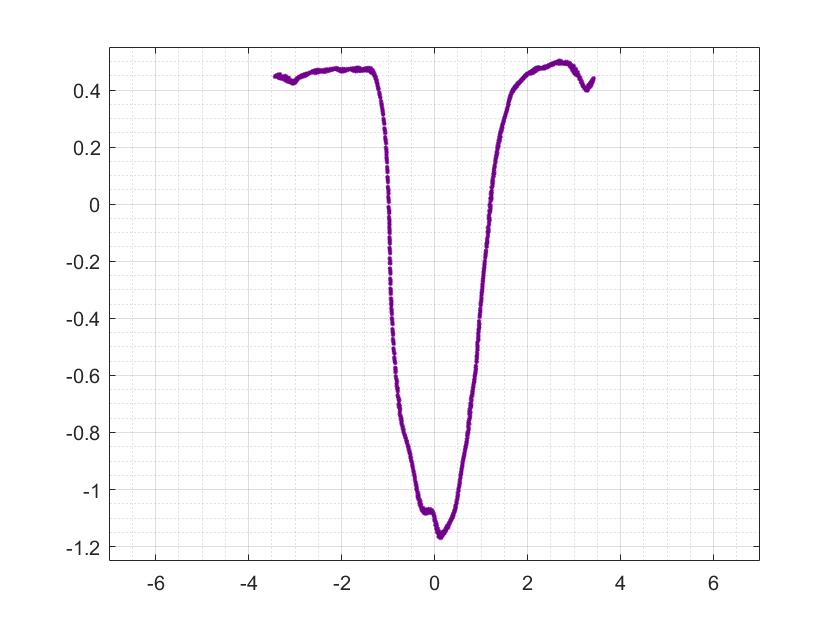

Number of slices
29
Aperture
77°
Depth
1.52659914 mm
FWMH
1.78682836 mm
Extremum points, [MP]
4.206896552
Frequency of MP change per mm
1.517241379
Depth / FWMH ratio
0.8543624978
Comments on the slices analysis
Incised with a shapr edge of a quertz blade. Quartz tool struggles to cut more dense inclusions in soapstone surface. Therefore, engraving is curved and has a lot of shallower casts. The incising process is not controllable. Engraving time is 30s
Link to the data
N/A
